PLEASE ADD THE SERIAL NUMBER OF YOUR MOTOR IN THE NOTES SECTION OF THE ORDER. WE WILL REVIEW COMPATIBILITY BEFORE SHIPPING. NOT NEEDED FOR GEN5 MOTORS.
Your serial number is located under the steering box and is visible once the motor is deployed.
The gateway will allow your Rhodan motor to integrate with select Raymarine, Simrad, and Lowrance units.
This module will allow you to manually control the Rhodan from the MFD. You may choose a saved waypoint on the MFD, and the Rhodan will move to the position and anchor the boat, as well as save numerous routes for your Rhodan to follow. Additionally, the Gateway will assist with communication between the Rhodan and the remote control by adding an additional antenna.
Rhodan Trolling motors with a serial number of R660856 or greater are compatible.
Rhodan trolling motors with serial numbers R589540 through R660855 will require a hardware upgrade. Please contact Rhodan Marine Customer Service before ordering.
Approved MFDs are as follows:
- Simrad GO series
- Simrad NSS EVO3
- Simrad NSS EVO3s
- Lowrance HDS Carbon
- Lowrance Elite T12
- Lowrance Live
- Raymarine Axium-Lighthouse 4.5

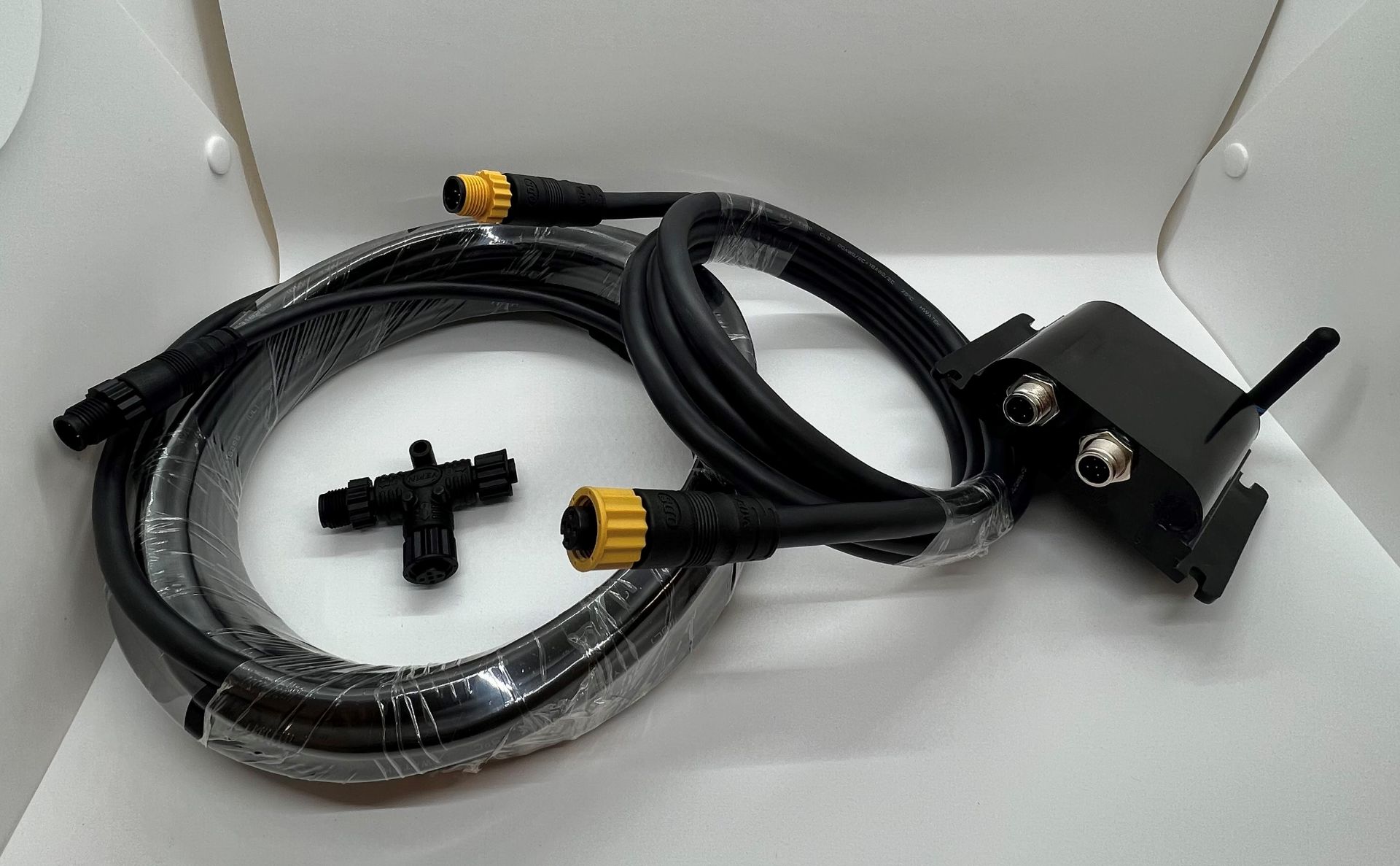

The kit includes the Rhodan Gateway, a proprietary Rhodan 30′ cable, 6′ NMEA 2000 cable, and a NMEA 2000 T-Connector.
